Product development / September–October 2026

Two watches.
One design.

I developed JDC Duo, a modular charging dock for IKEA SKÅDIS, around two different chargers and a bracelet that cannot open flat.

Role
Brief, design direction & physical testing
Process
AI-assisted CAD & FDM printing
Outcome
Working personal prototype

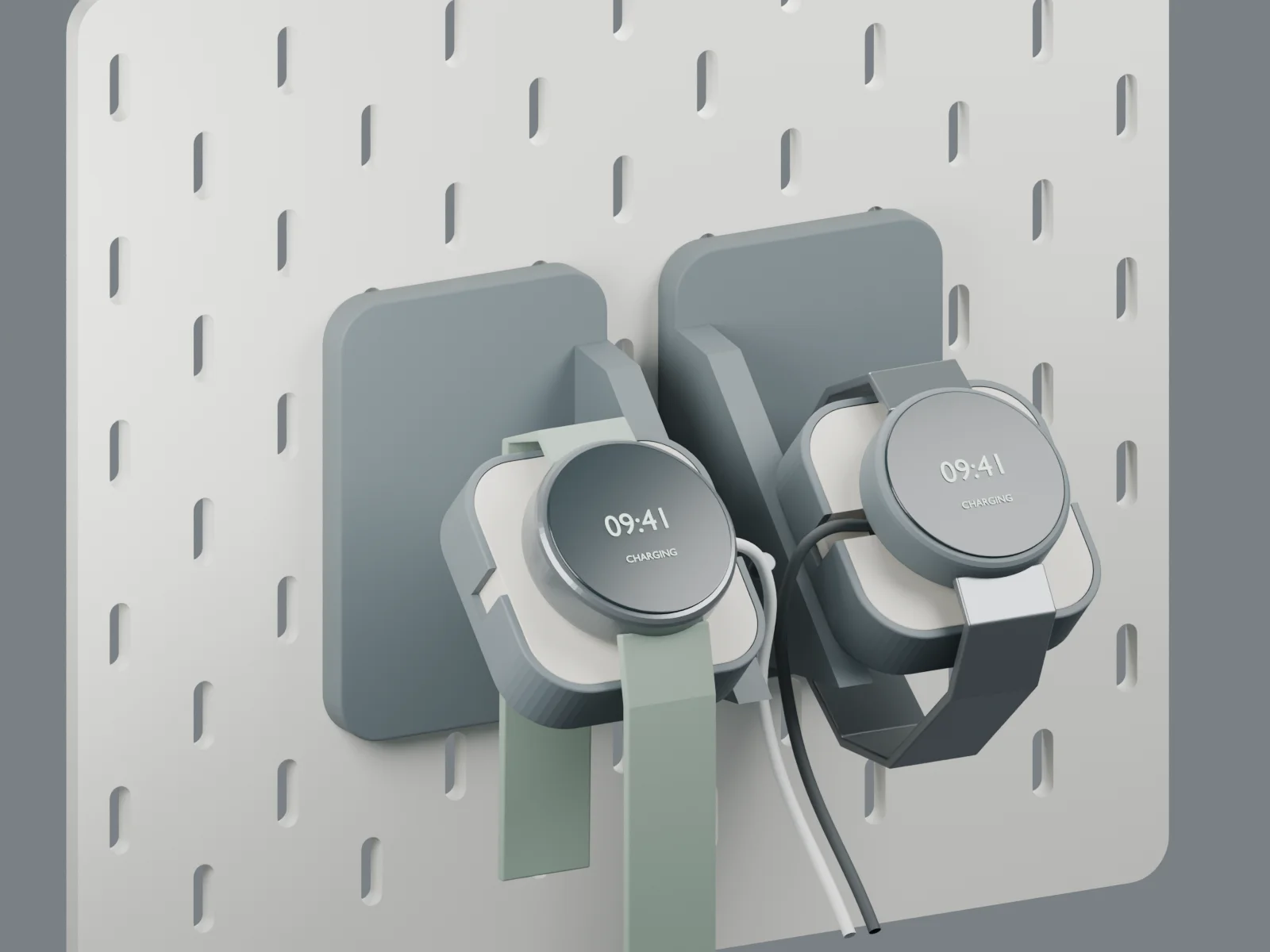

CAD visualisation of two matching watch docks with upward-facing watches and side-entry holders
Design visualisation. Watch and charger shapes are illustrative; this is a CAD render, not a photograph of the finished print.

01 / The brief

Design around how it is used.

I needed the dock to hold an original Pixel Watch 3 charger and a Galaxy Watch 4 charger side by side, with a consistent appearance. The Galaxy’s closed link bracelet made a conventional upright stand awkward, so I chose a side-entry arrangement.

I arranged the pair with mirrored entry sides, charging faces tilted upwards at 45°, and integral SKÅDIS hooks. I chose removable charger inserts so the same holder could accept different pucks without bolts.

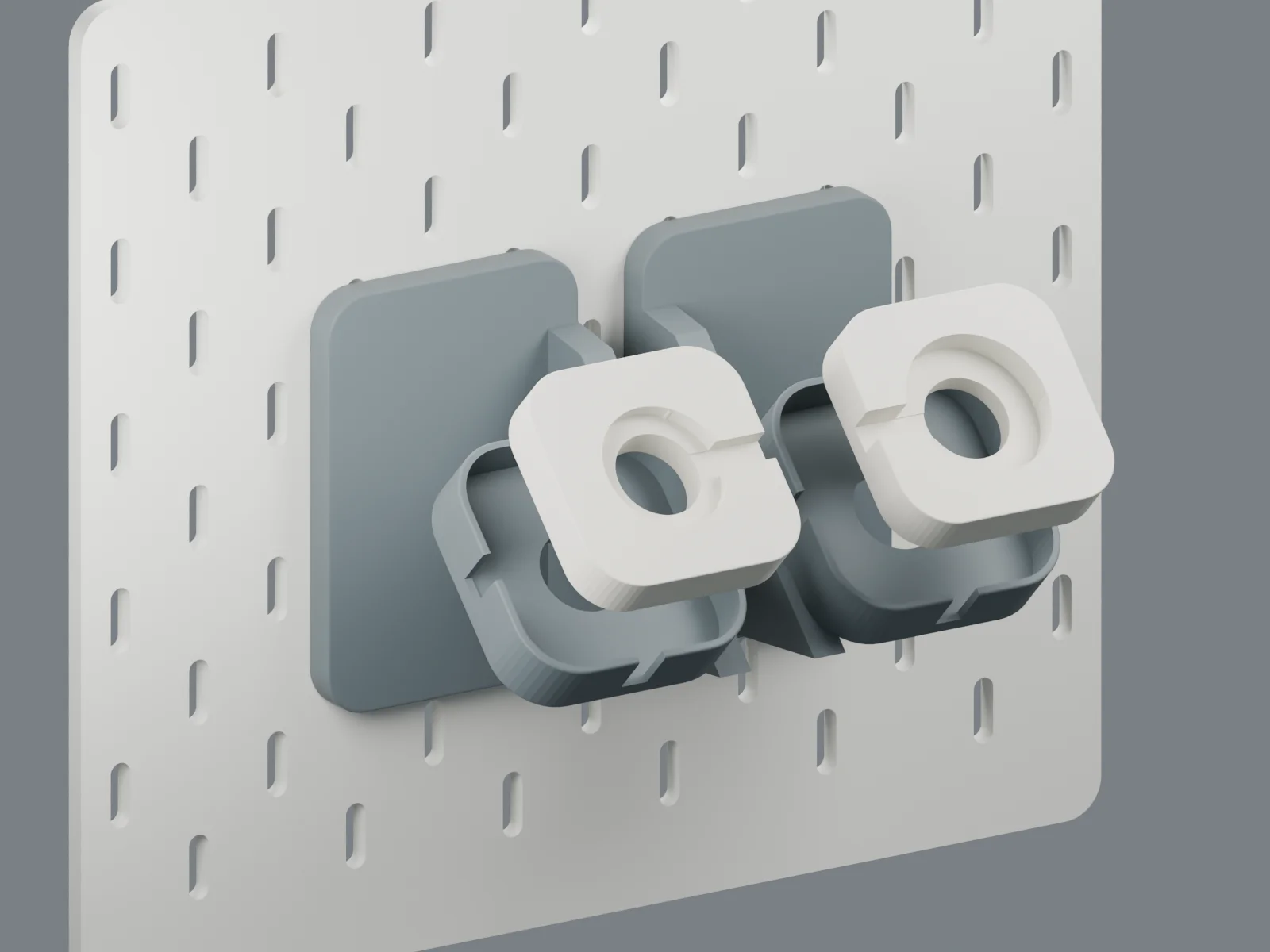

Exploded CAD view showing removable square charger inserts and the common holder design
My early CAD view of the interchangeable inserts. I directed changes to the puck-contact geometry after printing.

02 / Test, then change

The print was the test.

Pixel: fix the seat

I found that the first recess bottomed out before the puck seated properly. I tested a revised curved seat, which passed the physical fit check; the small test print took approximately 7.5 minutes.

Galaxy: fit is not retention

My initial coupon seemed to fit, but the charger fell out of the assembled holder on its own. I directed a replacement insert with stronger local grip ribs and tapered retaining beads, then confirmed its grip on 1 October.

Supports: count the cleanup

My complete pair worked, but the supports used too much material and their removal damaged the model. I still need to compare selective supports, tree supports and orientation for future body prints. I have not yet validated that improvement.

03 / Make only what changes

Replace the insert.
Keep the holders.

I reused the existing holders and Pixel insert for the Galaxy revision. I printed its replacement insert flat without supports, using a 0.4 mm nozzle, normal profile speeds, two walls and 10% infill in black PLA.

Full pair · slicer estimate
4 h 14 min / 132.5 g
Galaxy replacement · slicer estimate
21 min 12 sec / 12.1 g
Replacement supports
None

04 / Ownership & tools

Direction, feedback and iteration.

I set the requirements, chose the mounting and loading arrangement, ran the physical fit checks and directed each revision. AI assistance generated the parametric Blender geometry and helped prepare and operate the slicer. My test feedback determined which dimensions and print settings changed.

I used existing charging stands to inform my fit investigation. I developed this personal prototype while exploring a 3D-printing workflow for JDC Ventures Ltd; I have not released or commercially validated it. I have not established its long-term durability or charging endurance.
