CAD / visualisation / prototyping
CAD and 3D design
One design workflow: parametric CAD, physical prototypes, Blender visualisation and animation. Ideas made tangible, then tested against real constraints.
FROM MY WORKBENCHGCSE / FUSION 360

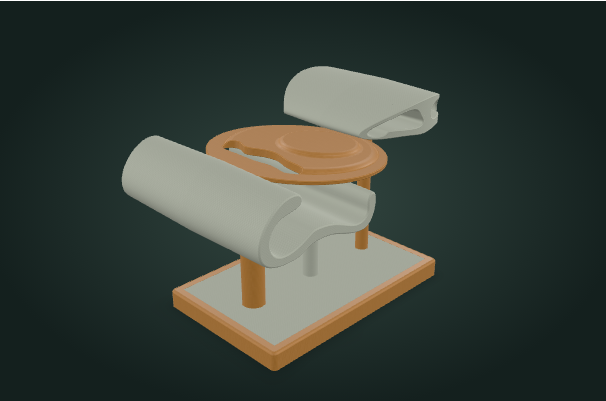

MTS PrintableDesigned in CAD. Developed through prototyping.
5 years / primarily Blender
Visualisation & animation
My Blender product images and animation work, with links to the finished listings where the images were used.
GCSE 3D Design / Grade 9
From CAD to physical prototypes.
Fusion 360 for plans and printable parts. TechSoft 2D Design for laser-cut components. Resin printing to develop and test ideas through GCSE research and development.
ESA — Angles
An original GCSE design. The interactive model loads only when you choose to explore it.
My prototyping setup & GCSE workflow
I used the Mars 4 DLP and Saturn 4 Ultra in my GCSE 3D Design research and development, alongside Fusion 360 and TechSoft 2D Design. I achieved a grade 9 in the course.
Mars 4 DLP
My first resin-printing setup.
Saturn 4 Ultra
Expanded my resin-prototyping setup.
Centauri Carbon 2 Combo
A later expansion into FDM printing, after GCSE.
Prototype to production.
PROJECT / 02Production
Assembly jig: prototype to CNC
SolidWorks jigs developed from printed prototype to release for CNC manufacture.
Modelled after learning SolidWorks by reverse-engineering a physical component with vernier calipers. The 3D-printed prototype was checked against the real production equipment in the cleanroom, refined, then released to the machine shop.
Work experience, Micro Electronics
Custom Interconnect · Andover · on site
One-month placement in the Micro Electronics department at the UK’s largest outsourced semiconductor assembly and test facility.
- Designed assembly jigs in SolidWorks and developed a 3D-printed prototype, validated against production equipment in the cleanroom before refinement and release for CNC manufacture.
- Trained in SolidWorks by reverse-engineering a physical component using vernier calipers to produce an accurate 3D model.
- Followed chip-on-board packaging end to end: wafer dicing against customer known-good-die data, die attach to in-house PCBs, wire bonding and glob-top encapsulation.
- Took part in wire-bonding operations and trained on the wire-bonding machine.
- Worked to cleanroom discipline: full gowning, ESD control and airborne particle monitoring to maintain ISO 14644-1 classification.
- Applied Python from GCSE Computer Science to test and debug an existing Tower of Hanoi implementation, working through move validation and state-handling logic.
